Modine Hot Dawg® HD60 Unit Heater
Freight Savings
For large heater orders over $10,000, freight savings are available by contacting our sales team at 1-888-281-9337.

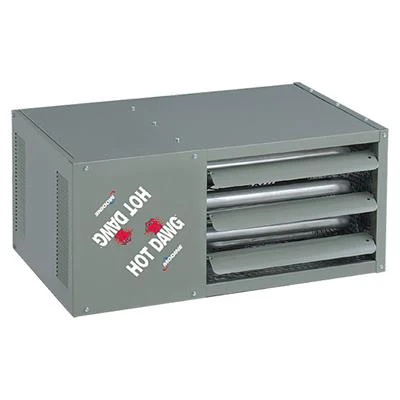

The Hot Dawg® HD60 Modine Heater offers powerful performance to keep midsize spaces nice and toasty year-round. With a maximum output of 49,200 BTUs per hour, this Hot Dawg is an ideal three-car garage heater size, and it can also heat greenhouses, workshops, patios and other spaces up to 550 square feet. It operates at 82% efficiency to help you save money on utility costs.
Modine Hot Dawg heaters are available for propane or natural gas - just select the appropriate model above. The neutral paint scheme and quiet operation keep your Modine HD60 out of the spotlight. Angle brackets are included for ceiling installation, and you can also mount it on a sidewall or just leave it on the ground. Note a three-inch vent pipe is required.
Every Hot Dawg heater is made in the U.S. and has a 10-year heat exchanger warranty.
Modine HD60 Hot Dawg Heater Features:
- Made in the U.S.
- Certified for residential, agricultural and industrial use.
- Quiet operation.
- An attractive low-profile design and neutral paint scheme assure that Hot Dawg will blend inconspicuously into any garage décor.
- Durable polyester-powder paint maintains life-long good looks.
- Standard power exhaust simplifies side-wall or roof venting with a small-diameter vent pipe.
- Versatile design allows for right- or left-hand piping and installation. Gas, electrical and flue connections can be changed from one side to the other by simply flipping the Hot Dawg over.
- Lightweight and easily installs from the ceiling with only two angle brackets (included)
- Installs quickly and easily with field wiring connections and knockouts for quick access to gas and electricity
- Designed for natural or propane gas.
- Sealed, permanently lubricated motor for trouble-free dependability.
- Full 10-year warranty on heat exchanger - two-year warranty on all other parts.
- Note: 24,000 through 75,0000 (HD25A-HD75A) BTUH heaters will include ceiling mounting brackets. Ceiling mounting brackets for the 100,000 and 125,000 (HD100A and HD125A) BTUH heaters must be purchased separately.
Dimensions and Diagrams
Dimensions, Diagrams and Specifications (PDF)
Modine Greenhouse Heating Solutions (PDF)
Wiring Diagrams (PDF)
Performance Specifications
| Model | Application | Input BTUH | Output BTUH | Vent Size | Weight (lb.) |
|---|---|---|---|---|---|
| HD30 | 1 to 1.52 Car Garage or up to 250 SF Greenhouse. |
30,000 | 24,600 | Requires 3" Vent Pipe | 55 |
| HD45 | 2 to 2.5 Car Garage or up to 350 SF Greenhouse. |
45,000 | 36,900 | Requires 3" Vent Pipe | 60 |
| HD60 | 3 to 3.5 Car Garage or up to 550 SF Greenhouse. |
60,000 | 49,200 | Requires 3" Vent Pipe | 80 |
| HD75 | Large Garage or up to 650 SF Greenhouse. |
75,000 | 61,500 | Requires 3" Vent Pipe | 85 |
| HD100 | Up to 1000 SF. | 100,000 | 82,000 | Requires 4" Vent Pipe | 125 |
| HD125 | Up to 1200 SF. | 125,000 | 102,500 | Requires 4" Vent Pipe | 125 |
Installation
Many of our customers happily report that purchasing a Hot Dawg heater from the Greenhouse Megastore helped them save 50% or more off the unit price received from a local HVAC installer. However, for safety reasons and to minimize installation problems, Modine strongly recommends having a licensed HVAC technician install your Hot Dawg heater. Although we are happy to offer limited technical support for your Hot Dawg purchase, we cannot install the heater for you over the phone nor are we able to troubleshoot problems you may experience if you choose to install the heater yourself. By purchasing this heater from us, you accept sole responsibility for installation and agree to abide by Modine's limited warranty.
Troubleshooting
Based on our experience in selling Modine Hot Dawg Heaters, we have written up a troubleshooting guide that deals with the issues we most commonly hear from customers. - Troubleshoot a Modine Hot Dawg
If you still need help, check out Modine's own troubleshooting guide.
Comparison Chart
Modine HD-Series vs. Sterling RF-Series
| Specification | Modine HD-Series | Sterling RF-Series | Comments |
|---|---|---|---|
| BTU Range | 30 - 125 MBH | 30 - 90 MBH | Modine covers more applications |
| Minimum Efficiency | 80% | 80% | Same non-condensing high efficiency |
| Blower Fan Units (HDB model only) |
60 - 125 MBH | Not Available | Modine covers more applications |
| Casing Paint | Polyester Powder | Wet Enamel | Modine units will look better longer |
| Quiet Swept Wing Fans | 100 and 125 MBH | Not Available | Larger Modine units are quieter |
| Heat Exchanger Gauge | 18 Gauge | 20 Gauge | Modine heat exchangers are heavier gauge |
| Optional Stainless Steel | Yes | Not Available | Modine covers more applications for corrosive environments |
| T.E. Fan Motor Standard | Yes | No | Modine motors are protected for longer life |
| Power Vented X-Changer Warranty (HDS and HDC models only) |
10 Years | 10 Years | Same 10 year heat exchanger warranty |
| Sep. Comb. X Changer Warranty (HDS & HDC models only |
10 Years | 5 Years | Modine separated combustion units warrantied longer |
| Component Warranty | 2 Years | 1 Year | Modine parts warrantied longer |
Additional Information
Manual
Residential Owners Manual (PDF)
Warranty
Modine offers a 10-year limited warranty on the heat exchanger and a two-year limited warranty on all other components. Please note this warranty covers parts only and does not cover any labor costs associated with repairing the heater. View Warranty (PDF)
Product Video
Heater Warranty and Return Policy
It is the customer's responsibility to carefully inspect heaters for damage before accepting delivery since heaters are usually not returnable once delivery is accepted. Obviously damaged heaters should be refused - contact Greenhouse Megastore customer service to arrange for a replacement unit. Once delivery is accepted, Greenhouse Megastore will gladly provide replacement parts under the manufacturer's warranty to repair damaged or defective heaters. However, this warranty does not include any labor costs associated with installing these parts. Warranty issues should be diagnosed by a certified HVAC technician since parts deemed not to be defective by the manufacturer are not available for credit back to the customer. Specific warranty policies vary by manufacturer but typically cover replacement parts as indicated above up to one year after purchase. Please contact Greenhouse Megastore customer service if you have any questions about the warranty for your specific heater.
